2013-21 POLARIS SCRAMBLER XP 850 / 1000 REAR FRAME BRACES BLACK
Save $ -59.95
**WORKS ON ALL MODELS WITH 550/850/1000 CC ENGINES INCLUDING SPORTSMAN, SCRAMBLER, TRAIL AND HIGHLIFTER**
Now Available in PolarisBLACKPowdercoated!REDis for demonstration only.

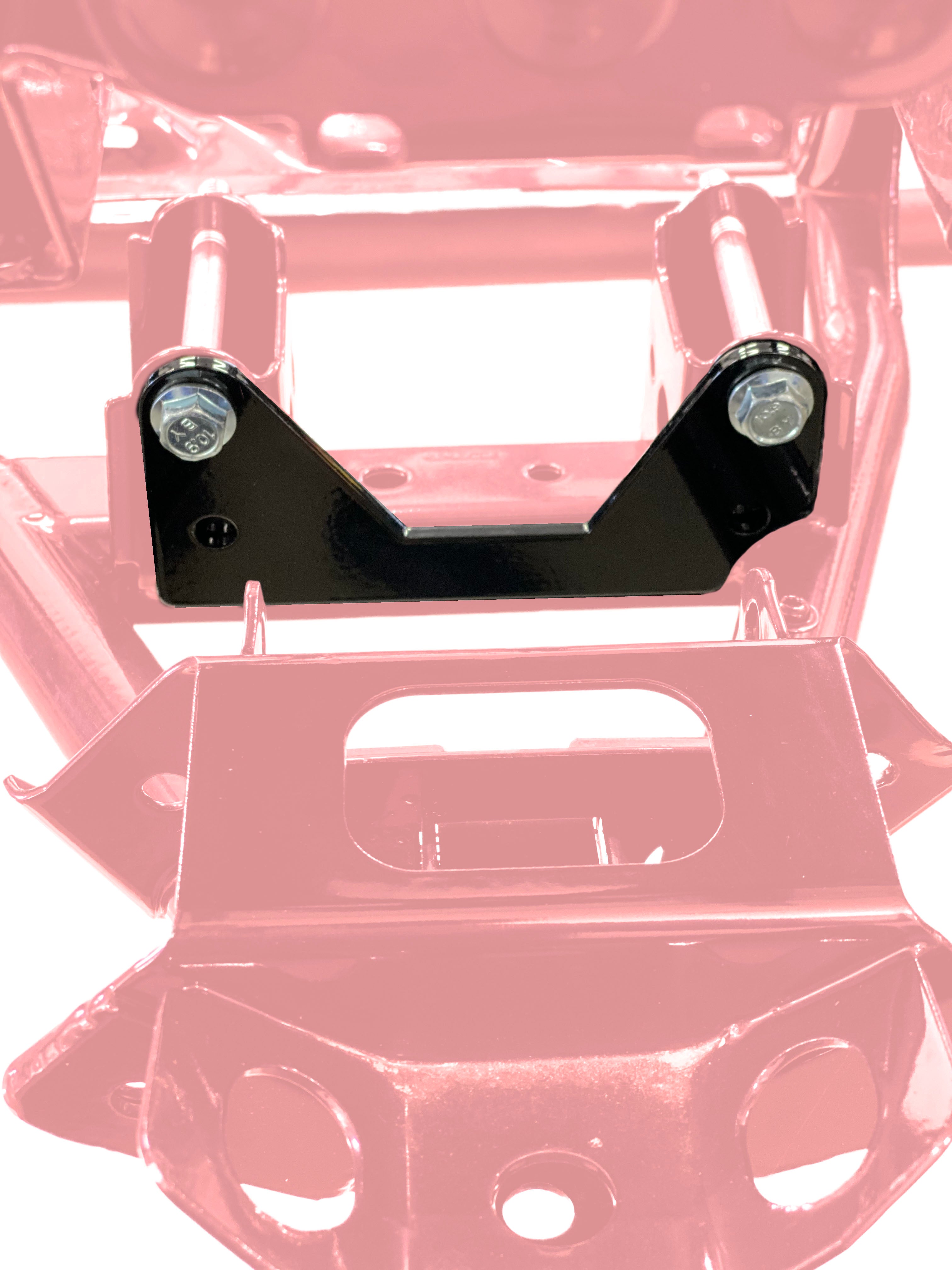

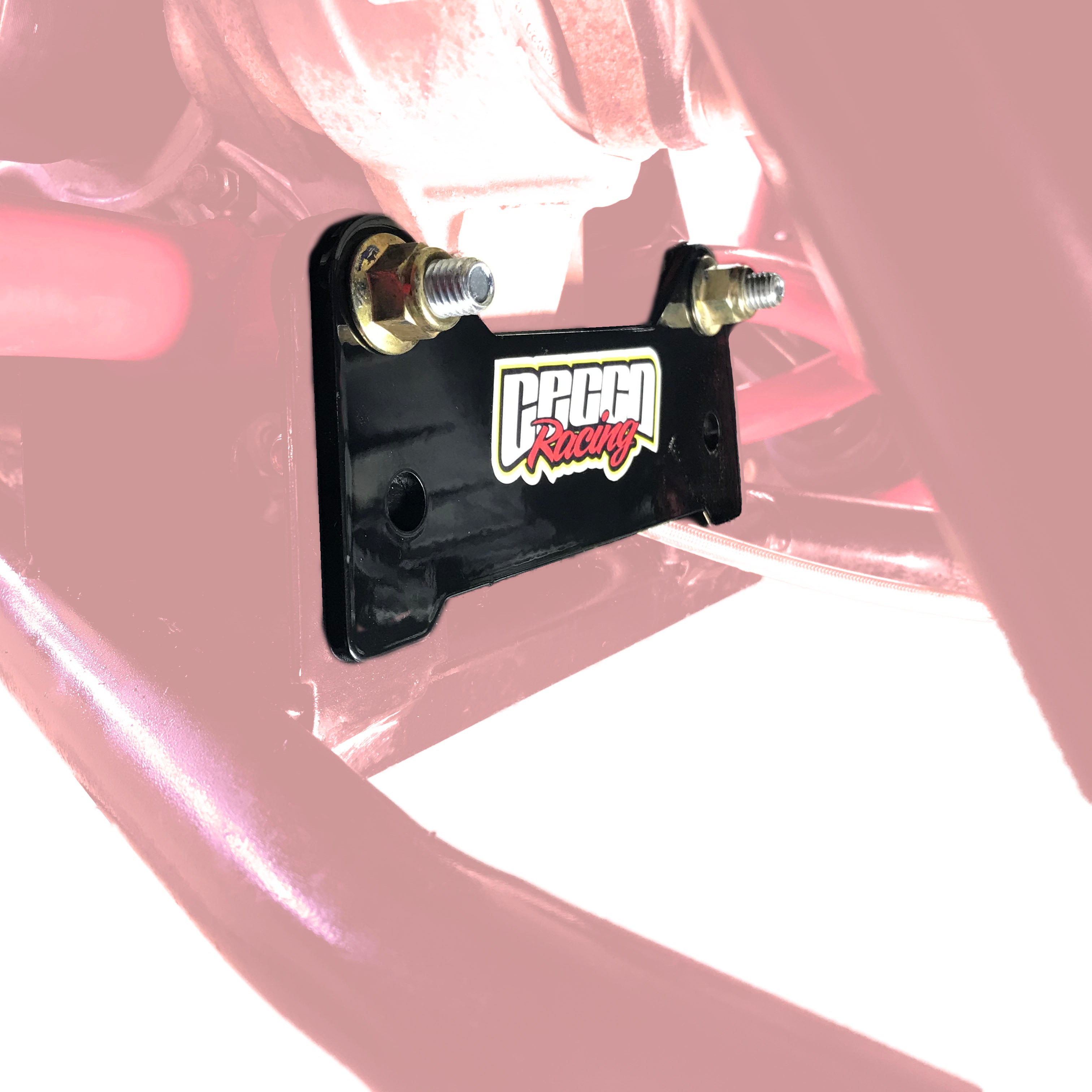

3/16" Thick Steel Rear Frame Braces for all years 2013 - 2021 Scrambler 850 / 1000 XP. These braces will add additional support to the rear A-arm mounts to reduce frame flex and potential fatigue from aggressive riding and or potential accidents/incidents.
This is a must-have bolt-on modification for peace of mind while riding/racing.
Beware of lesser "Bolt-on" Brace kits. Industry-standard for mechanical shear point braces is 1.5X thickness of the original welded mounts since your using a mechanical tie (opposite side bolt) to carry the load.
We also include longer metric 10.9 flanged zinc plated bolts in our kit that will carry that load plus still keep your factory nylock nuts fully engaged to keep you suspension components fully secured as designed by the factory with 2-3 threads showing when installed.
Additional 10mm lower holes are added if you choose to drill & bolt for additional support. I would advise with your local Polaris dealer about warranty before drilling the frame.

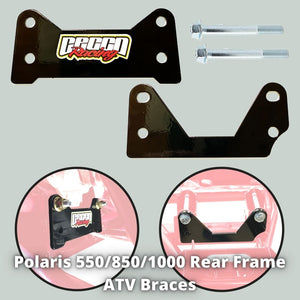

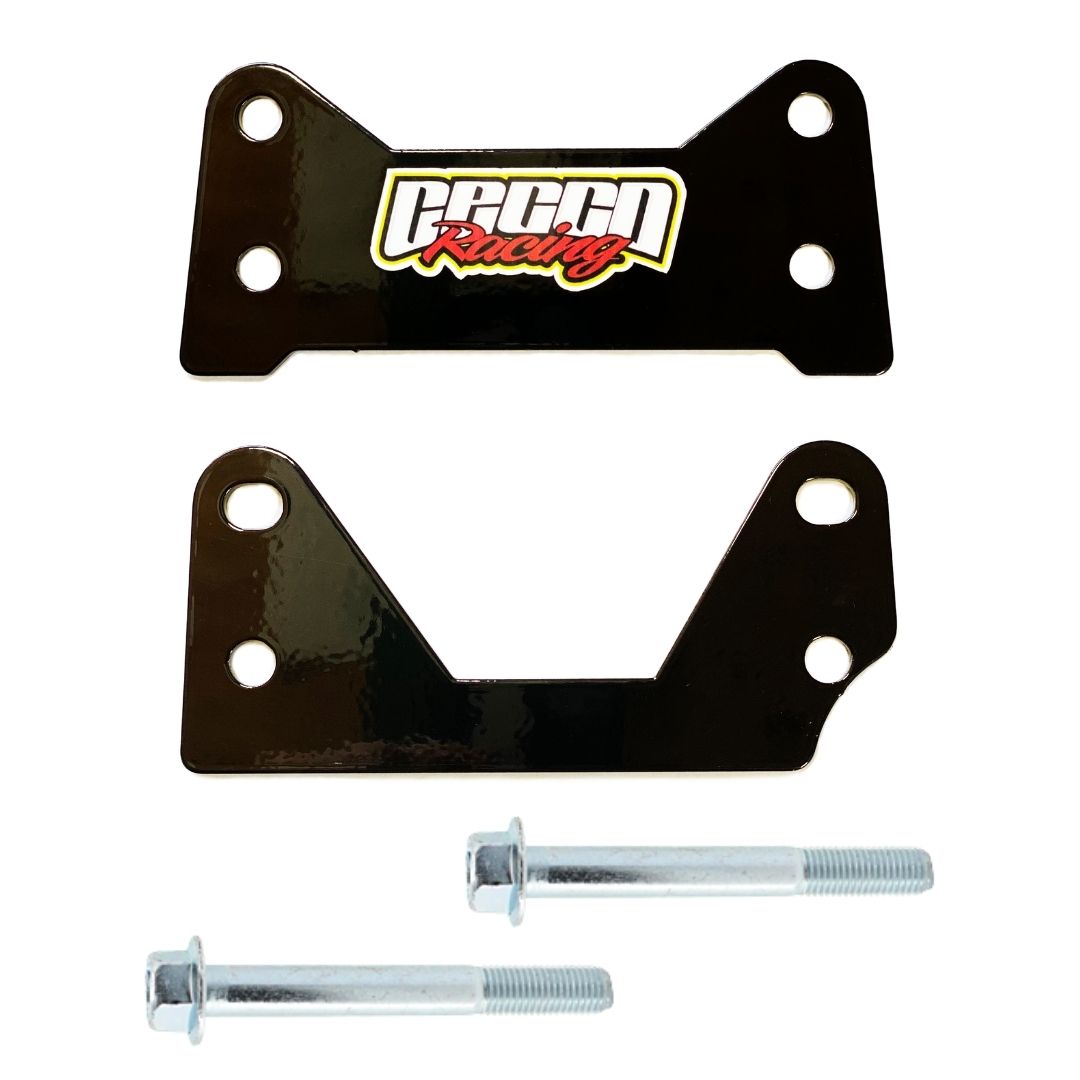

The kit comes with:
2 Laser-cut 3/16" Steel Brackets
2 10mm x 1.5x 100mm zinc coated 10.9 metric bolts.
